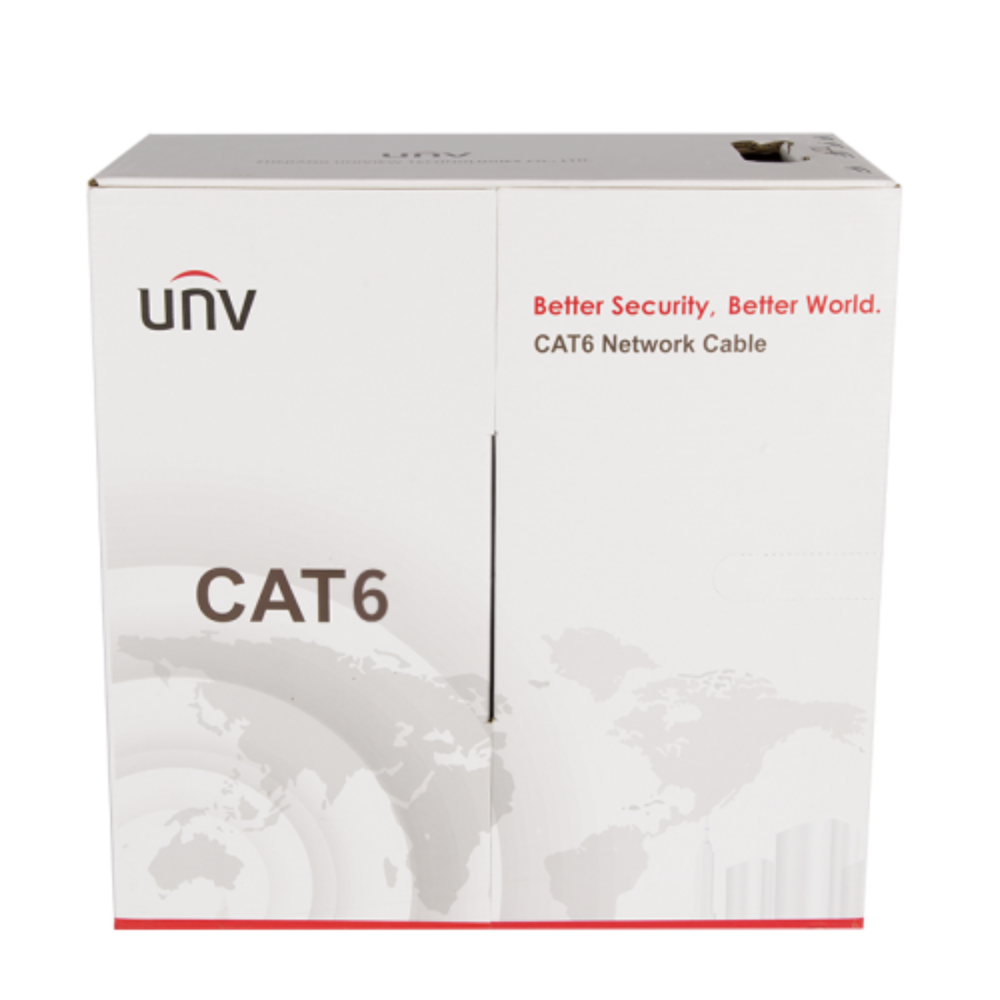

UNV CAB-LC3110B-E-IN CAB
CAB-LC3110B-E-IN High Performance Security Solution
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Cable | |
|---|---|
| Product model | CAB-LC3100B-E-IN |
| Test Standard | ISO/IEC11801???TIA-568-C.2 |
| Product specification | HSYV-6 4??2??0.52 |
| Packing length | 305??1m |
| Ambient temperature | -20??????60??? |
| Rip-cord | Yes |
| Crossing backbone | Yes |
| Conductor | |
| AWG | 24 |
| Nom.O.D.(mm) | 0.52??0.03 mm |
| DC resistance | ???95 ??/km |
| Material | OFC(Oxygen free copper) |
| Insulation | |
| Diameter | 0.93??0.05 mm |
| Material | HDPE |
| Thickness | 0.2??0.02 mm |
| Color | Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown |
| Pitch | |
| Offset pitch | ???20 mm |
| Cable pitch | ???120 mm |
| Sheath | |
| Material | PVC(complies RoHS/REACH) |
| Thickness | 0.6??0.05 mm |
| External O.D. | 5.8??0.3 mm |
| Tensile strength | >13.5 Mpa |
| Color | Orange |
| Surface Printing | |
| Color | Black |
| Letter height | 3.0??0.3 mm |
| Print error / Space | 1??0.005 m |
| Case number | Yes |
| Packing | |
| Packing | Carton |
| Once packing dimension | 420mm*205mm*420mm |
| Twice packing dimension | 450mm*440mm*445mm |
| Twice packing quantity | 2 cases |
