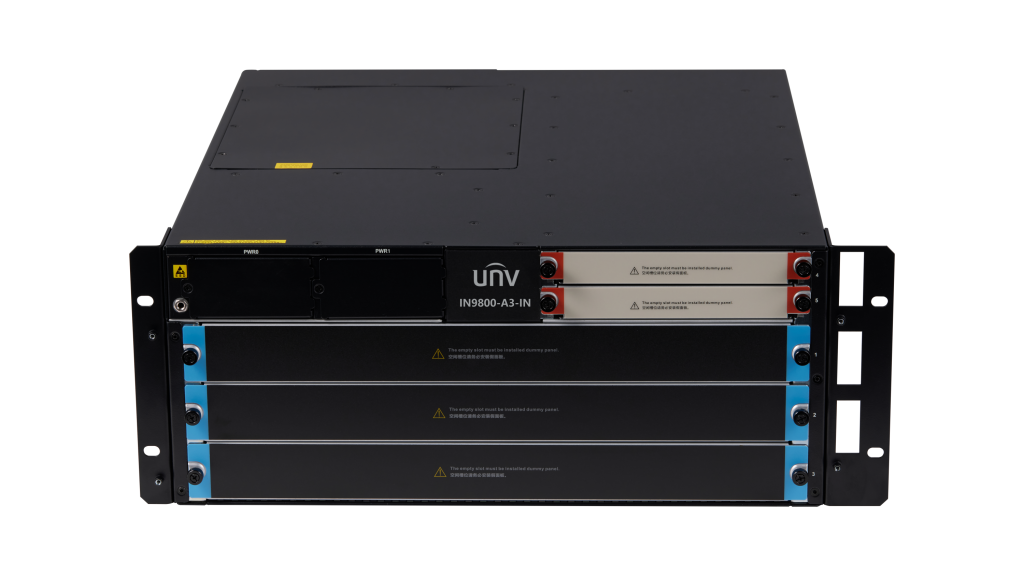

UNV IN9800-A3-IN Enterprise Modular Core Switch Chassis
High-Density Enterprise Core Routing Switch Chassis with Redundant Power
- Carrier-grade modular architecture for enterprise data centers & campuses
- Non-blocking multi-terabit switching fabric with wire-speed L2/L3 forwarding
- Dual redundant management controller slots & 1+1 hot-swap power modules
- High-density 10G / 40G / 100G uplink card scalability
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Hardware Specification | |
|---|---|
| MPU Slots | 2*Half-width slot |
| Module Slots | 3 |
| Switching capacity | 1.44Tbps |
| Forwarding performance | 857.08Mpps |
| Fan Slots | 1 |
| Cooling Fans | 4 |
| Air Inlet and outlet direction | Right-side inlet, backend outlet |
| Power Slots | 2,1 to 2 service boards, recommend 1 power supply;3 service boards, recommend 2 power supply. |
| Power Supply | 110V AC to 240V AC, 50/60Hz |
| Max.Power | 550W |
| Dimensions (W×D×H) | 420*480 *175mm, 4U |
| Operating Temperature | 0℃ to 45℃ |
| Operating Humidity | 5% to 95%, non-condensing |
| MTBF | >200000h |
| Weight | Empty Frame: ≤13.5kgFully Loaded: ≤30kg |
| Software Specification | |
| Layer-2 | VLAN, STP, RSTP, MSTP, QinQ, flexible QinQ, VLAN Mapping, full duplex traffic control, back pressure traffic control, link aggregation (support 128 aggregation groups, with each group consisting of 8 members), cross-board link aggregation, cross-board port/flow mirroring, port broadcast/multicast/unknown unicast forwarding storm suppression, Jumbo Frame, VLAN division based on port/protocol/subnet and MAC, PVLAN, GVRP, CoS priority, etc. |
| Layer-3 | IPv4: Static routing, RIP v1/2, OSPF, ISIS, BGP, policy-go-together, etc.IPv6: IPv6 static routing, RIPng, OSPFv3, ISISv6, BGP4+, transition tunnel technology from IPv4 to IPv6, etc. |
| Data Center | Support 802.1Qbg and DCBSupport mainstream Overlay standards such as VXLANSupport Openflow1.3 protocol |
| Virtualization | Support VSM (Virtual Switching Matrix) N:1 virtualization technology, which performs virtualization of multiple L2 ~ 7 physical devices into a single L2 ~7 logical device. Support service chain technology, which defines business streams based on L2-7 protocol features, and allows on-demand assignment of physical/logical service modules for traffic passage. Support IP-based unified management between the host and service modules and unified configuration interface |
| Reliability | Support master control board 1+1 redundancySupport power N+1 redundancyPassive backplane design; all boards support hot-plugSupport online status monitoring protocol to perform detection of key components including master control engine, backplane, chip and storage |
| Multicast | Support IGMPv1/v2/v3, IGMPv1/v2/v3 Snooping, PIM-SM/PIM-DM/PIM-SSM |
| ACL | Support ACL rules including source IP, source port, destination IP, destination port, protocol number, physical port |
| Maintenance | Support FTP, TFTP, X-modemSupport Web management port, SNMP v1/v2/v3Support RMON, NTP clock, intelligent power management |
