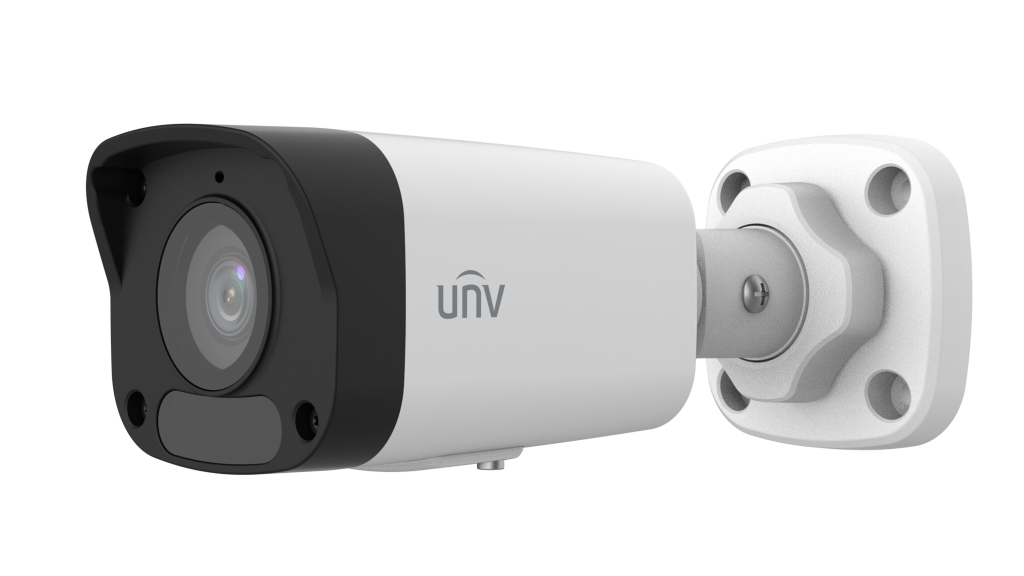

UNV IPC2122LB-ASF40K-A 2MP Fixed IR Bullet Network Camera
2MP Fixed IR Bullet Network Camera
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Camera | |
|---|---|
| Max Resolution | 2 MP |
| Sensor | 1/2.9" CMOS |
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| S/N | >52 dB |
| WDR | DWDR |
| Lens | |
| Focal Length | 4.0 mm |
| Iris Type | Fixed |
| Iris | F2.0 |
| Field of View (H) | 82.5?? |
| Field of View (V) | 44.5?? |
| Field of View (D) | 93?? |
| DORI | |
| DORI Distance (Lens) | 4 mm |
| DORI Distance (Detect) | 64.3 m (211.0 ft.) |
| DORI Distance (Observe) | 24.8 m (81.4 ft.) |
| DORI Distance (Recognize) | 12.4 m (40.7 ft.) |
| DORI Distance (Identify) | 6.2 m (20.3 ft.) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 30 m (98.4 ft.) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920 ?? 1080), max. 30 fps; 720P (1280 ?? 720), max. 30 fps Sub Stream: D1 (720 ?? 576), max. 30 fps; 640 ?? 360, max. 30 fps; 2CIF (704 ?? 288), max. 30 fps; CIF (352 ?? 288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support (main stream) |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180?? |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Events | |
| Basic Detection | Motion detection, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U???G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 ?? RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12 V??25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.0 W |
| Power Interface | ??5.5 mm coaxial power plug |
| Dimensions | 161 mm ?? 62 mm ?? 63 mm (6.3" ?? 2.5" ?? 2.5") (L ?? W ?? H) |
| Weight | 0.21 kg (0.46 lb.) |
| Material | Graphene + Plastic |
| Storage Environment | -30 ??? to 60 ??? (-22 ??? to 140 ???), Humidity: ??? 95% RH (non-condensing) |
| Working Environment | -30 ??? to 60 ??? (-22 ??? to 140 ???), Humidity: ??? 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | N/A |
| Web Client Language | 1 Language: English |
