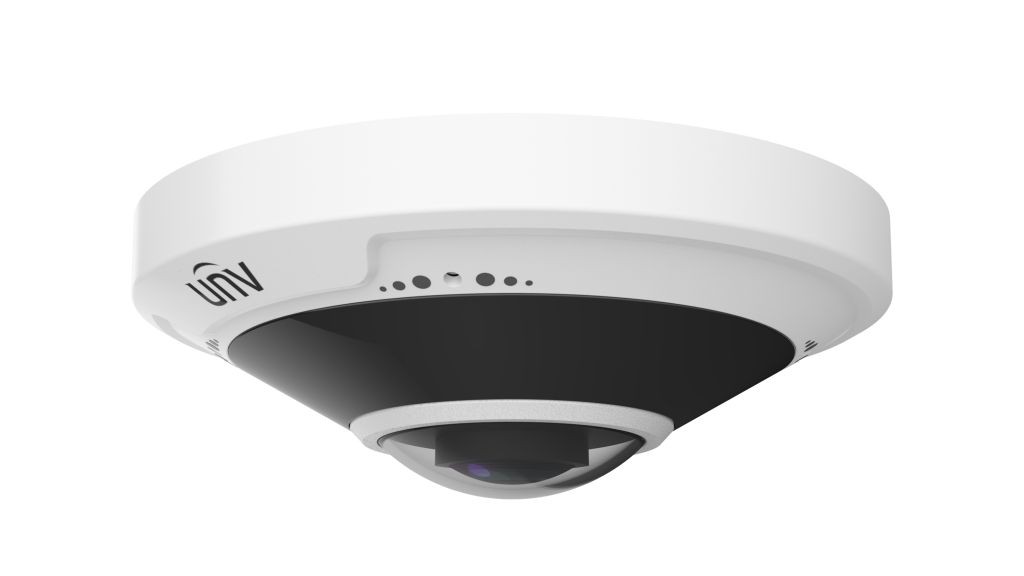

UNV IPC815SB-ADF14K-I0 5MP Panoramic IR Fixed Fisheye Network Camera
5MP Panoramic IR Fixed Fisheye Network Camera
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Camera | |
|---|---|
| Max Resolution | 5 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 1.4 mm |
| Field of View (H) | 180?? |
| Iris Type | Fixed |
| Iris | F2.0 |
| Field of View (V) | 180?? |
| Field of View (D) | 180?? |
| Lens Type | Fixed |
| Video | |
| Main Stream | 5 MP (2592 ?? 1944), max. 30 fps |
| Sub Stream | Fisheye View: 1080P (1920 ?? 1080): max. 30 fps; 720P (1280 ?? 720), max. 30 fps |
| Third Stream | Fisheye View: D1 (720 ?? 576), max. 30 fps; 640 ?? 360, max. 30 fps; 2CIF (704 ?? 288), max. 30 fps; CIF (352 ?? 288), max. 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| DORI | |
| DORI Distance (Lens) | 1.4 mm |
| DORI Distance (Detect) | 31.5 m (103.4 ft) |
| DORI Distance (Observe) | 12.6 m (41.3 ft) |
| DORI Distance (Recognize) | 6.3 m (20.7 ft) |
| DORI Distance (Identify) | 3.2 m (10.5 ft) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 10 m (32.8 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Live View Display | |
| Hardware Decoding | N/A |
| Software Decoding | Ceiling mount: fisheye view, 360?? panorama + 1PTZ, 180?? panorama view, fisheye + 3PTZ, fisheye+4PTZ, fisheye + 8PTZ,360?? panorama + 6PTZ Table mount: fisheye view, 360?? panorama + 1PTZ, 180?? panorama view, fisheye + 3PTZ, fisheye+4PTZ, fisheye + 8PTZ,360?? panorama + 6PTZ Wall mount: fisheye view, 180?? panorama view, 180?? panorama view + 3PTZ, 180?? panorama view + 4PTZ, 180?? panorama view + 8PTZ |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Smart IR | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180?? |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Support |
| Defog | Digital defog |
| Image Stabilization | N/A |
| Intelligent | |
| Statistical Analysis | Heat map (Working with management platform) |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface | |
| Audio I/O | 1 Input: impedance 35 k??, amplitude 2 V [p-p], 1 Output: impedance 600 ??, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | N/A |
| Network | 1 ?? RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP66 (IEC 60529-2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC 12 V??25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 8.5 W |
| Power Interface | ??5.5 mm coaxial power plug |
| Dimensions | ??125 mm ?? 43.7 mm (??4.9" ?? 1.7") (?? ?? H) |
| Weight | 0.36 kg (0.79 lb) |
| Material | Metal + Plastic |
| Working Environment | -30 ??? to 60 ??? (-22 ??? to 140 ???), Humidity: ??? 95% RH (non-condensing) |
| Storage Environment | -30 ??? to 60 ??? (-22 ??? to 140 ???), Humidity: ??? 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
