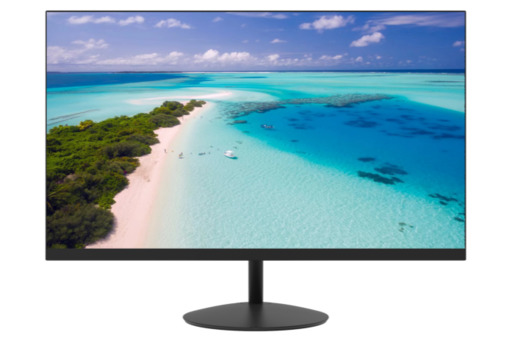

UNV MW-LC22-P1 22-inch Commercial LED Display Module
High-Definition Commercial LED Display Unit with Ultra-Slim Bezel
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Panel | |
|---|---|
| Backlight | LED |
| Panel Size | 21.45" |
| Resolution | 1920 ?? 1080 |
| Color Support | 16.7 M |
| Brightness (cd/m??) | 250 |
| Contrast Ratio | 3000:1 |
| Refresh Rate | 100 Hz |
| Response Time (ms) | OD 5 |
| Viewing Angle (H/V) | Horizontal 178??, Vertical 178?? |
| Display Size (mm) | 478.656(H)*260.28(V) |
| Color Gamut | 72% NTSC |
| Panel Type | VA |
| Interface | |
| Video Input | 1 x HDMI, 1 x VGA |
| VESA | |
| VESA (mm) | 75*75 |
| OSD | |
| Multi-Language | Chinese, English, German, French, Italian, |
| General | |
| Input Voltage | DC 12 V, 2 A |
| Typical Power Consumption (W) | ???24 |
| Standby Power Consumption (W) | ???0.5 |
| Product Dimensions (W ?? H ?? D) (mm) | 492.7*284.0*41.2 |
| Package Dimensions (W ?? H ?? D) (mm) | 598*99*366 |
| Weight (kg) | Net Weight: 2.05Gross Weight: 2.86 |
| Operating Temperature | 0??C ~ 40??C |
| Operating Humidity | 10% ~ 85% (No Condensation) |
| Storage Temperature | -20??C ~ 60??C |
| Storage Humidity | 10% ~ 90% (No Condensation) |
| Standard | 1 x HDMI Cable, 1 x Quick Guide, 1 x Pedestal, 1 x Adapter |
