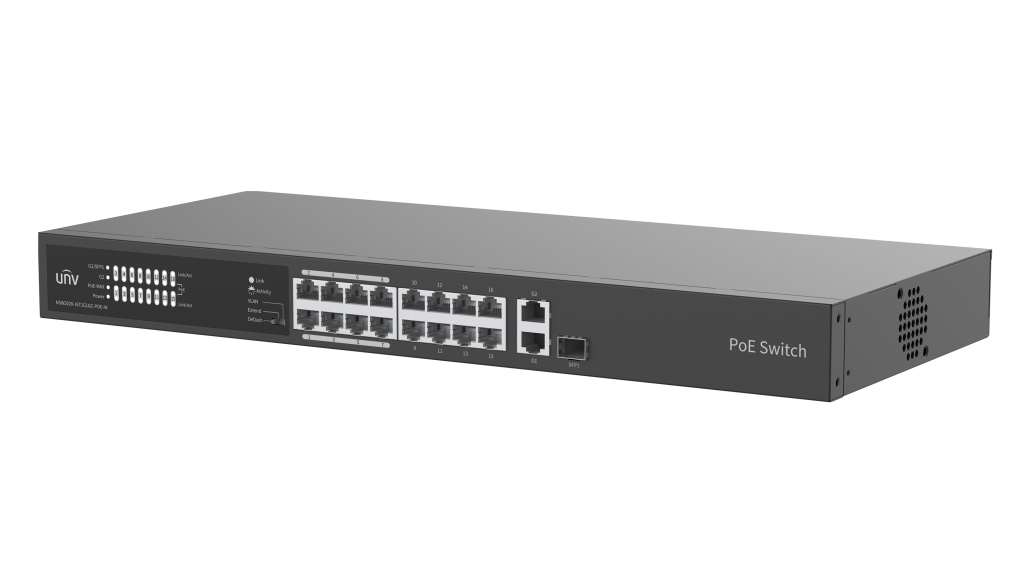

UNV NSW2020-16T1GT1GC-POE-IN Ethernet POE Switches
Ethernet POE Switches
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Hardware Specification | |
|---|---|
| Ports Type | 16??100Mbps PoE ports (RJ45)+ 1??1000Mbps Gigaethernet ports +1??1000Mbps Combo ports |
| Switching capacity | 7.2 Gbps |
| Packet Buffer | 4 M bit |
| Forwarding performance | 5.36Mpps |
| Power Supply | AC: 100 to 240V, 50/60Hz |
| MAC | 16K |
| PoE Standard | IEEE 802.3 at, IEEE 802.3af |
| PoE Mode | ModeB (4578) |
| Max.PoE Power | Max capacity:250W Max capacity for single port: 30W |
| Prior Ports | 1 to 8 |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Cooling Fans | 1 |
| Max.Power | 265W |
| Operating Temperature | 0??C to 45??C (32??F to 113??F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Indicator | POWER: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal PoE-MAX??? off ???The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT??? Off: No link Steady on: Linked Flashing: Transmitting data |
| Dimensions (W??D??H) | 440*195*44mm |
| Weight | 2.12KG |
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports |
| Compliance | |
| NDAA Compliant | Support |
