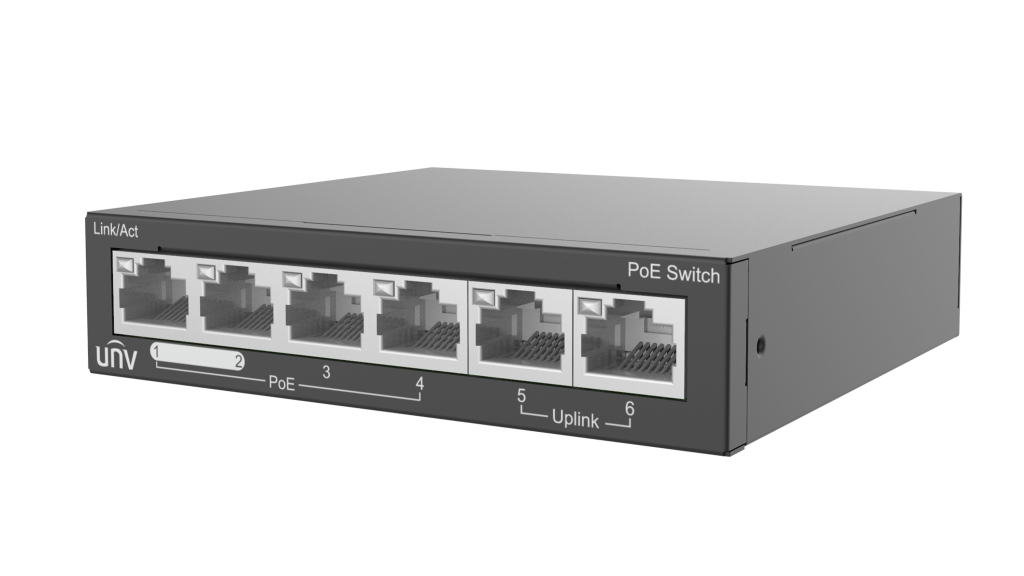

UNV NSW2020-6T-POE-IN Ethernet PoE Switches
Ethernet PoE Switches
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Hardware Specification | |
|---|---|
| Ports Type | 6??100Mbps network ports (RJ45), including 4 PoE ports |
| Switching capacity | 1.2 Gbps |
| Power Supply | DC: 48/51V, powered by adapter(100 to 240V, 50/60Hz) |
| Forwarding performance | 0.90Mpps |
| MAC | 1K |
| PoE Standard | IEEE 802.3 at, IEEE 802.3af |
| Packet Buffer | 448K bit |
| PoE Mode | ModeB (4578) |
| Max.PoE Power | Max capacity:60W Max capacity for single port: 30W |
| Prior Ports | 1 to 2 |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Max.Power | 65W |
| Operating Temperature | 0??C to 45??C (32??F to 113??F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Indicator | POWER: Steady on: AC input is normal Off: No AC input No PoE Indicator PoE-MAX??? off ???The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT??? Off: No link Steady on: Linked Flashing: Transmitting data |
| Dimensions (W??D??H) | 107*101*25mm |
| Weight | 0.19KG |
| Working Mode | Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters |
| Compliance | |
| NDAA Compliant | Support |
