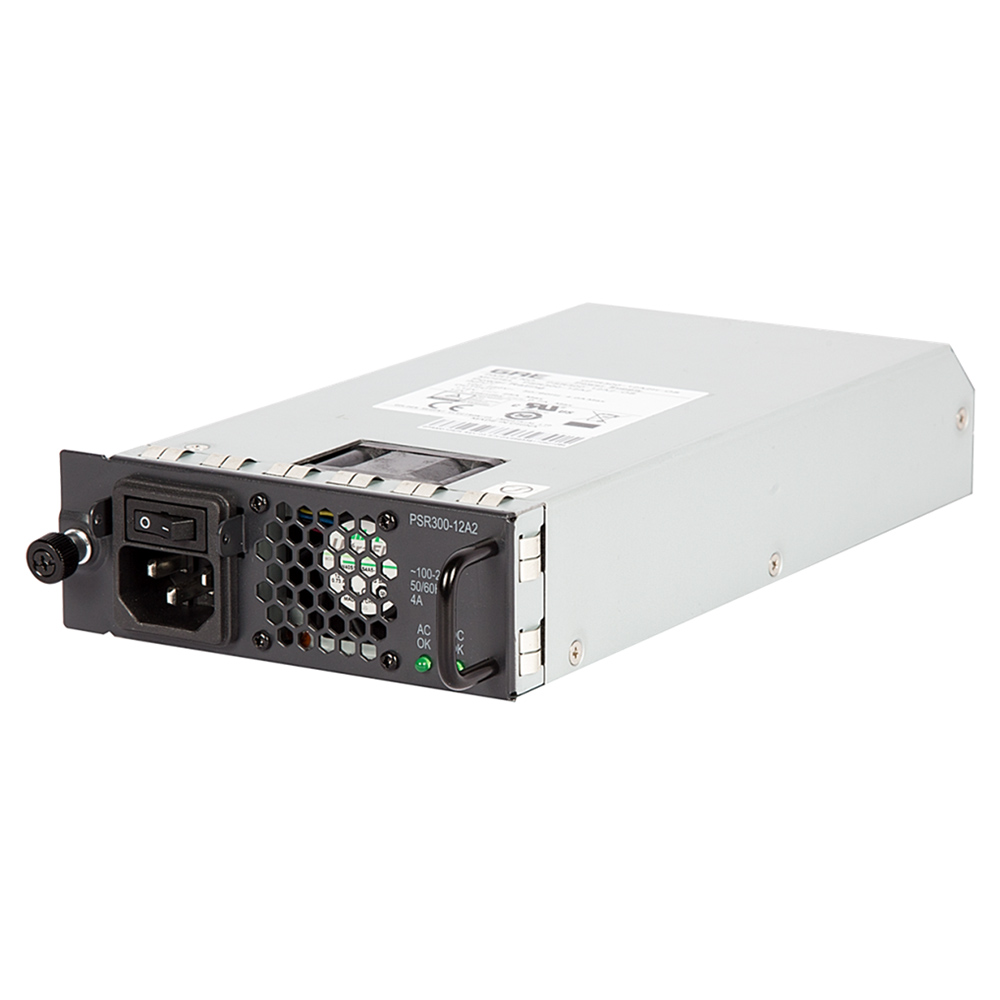

UNV PWR-300A-IN Enterprise Power Supply Module
PWR-300A-IN Industrial Redundant Power Supply Unit
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| AC Input | |
|---|---|
| Voltage | 90???264V AC |
| Frequency | 47???63Hz |
| Power Factor | ???0.95 |
| Input Current | ???4A@100VAC |
| Input Protection | Input undervoltage, Input overvoltage |
| DC Output | |
| Voltage/Current | +12VDC/25A, +12VStandby/0.7A |
| Output Power | 312W |
| Output Efficiency | ???83%, 220V AC/25A |
| Line Regulation | ??5% |
| Load Regulation | ??3% |
| Regulated Voltage Accuracy | ??5% |
| Dynamic Response Overshoot | ??5% |
| Current Sharing Rate | ??5% |
| Output Protection | Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection |
| Other | |
| Indicator light | Normal: green on, Abnormal: Yellow on |
| Working Temperature | 0~55??? |
| Storage Temperature | -40~70??? |
| Working Humidity | 10%~90% |
| Heat dissipation | Ventilating fan design, heat emission at back |
| Dimension (D ?? H ?? W) | 234.9mm??40.13mm??101.6mm |
| Certification | |
| EMC standards | EN55022, EN55024 |
| NEBS standards | GR-63-CORE ISSUE 2 |
| Approved standards | CB, FCC, UL |
