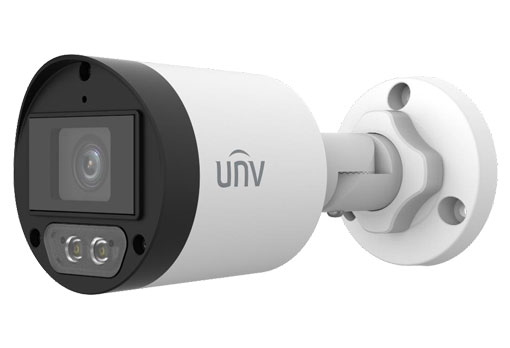

UNV UAC-B122-AF40M-W 2MP ColorHunter HD Fixed Mini Bullet Analog Camera
2MP ColorHunter HD Fixed Mini Bullet Analog Camera
- 2MP high quality imaging
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- Supports 180?? horizontal flip, 180?? vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- Supports digital defog
- Metal front face and housing
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Sensor | |
|---|---|
| Pixel | 2MP |
| Size | 1/2.9" |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (white light on) |
| Lens | |
| Lens | 4.0mm |
| Lens mount | M12 |
| Angle of view | H: 83.8?? V: 42.7?? D: 100.1?? |
| Illuminator | |
| Illuminator | Two white-light illuminators |
| Illumination distance | 40m |
| Lifetime | ???60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H)??1080(V) 720P: 1280(H) ??720(V) |
| Frame rate | TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s???1/50000s |
| Image | |
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 color images |
| Digital noise reduction | 2D/3D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180?? horizontal flip, 180?? vertical flip |
| Defog | Digital Defog |
| Audio | |
| Microphone | Built-in Mic |
| Camera audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating environment | |
| Temperature | -30??C to 60??C (-22??F to 140??F) |
| Humidity | ???95% (RH, non-condensing) |
| Surge protection | 4kV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V (??25%), with reverse polarity protection, Max 3.12W |
| Mount | 3D bracket supplied, surface mount (default), optional junction box |
| Dimensions | 157.4mm*66.5mm*66.5mm (L*W*H) |
| Material | Metal |
| Weight | 279g (0.62lb) |
| Certification | CB, CE, FCC, UL |
