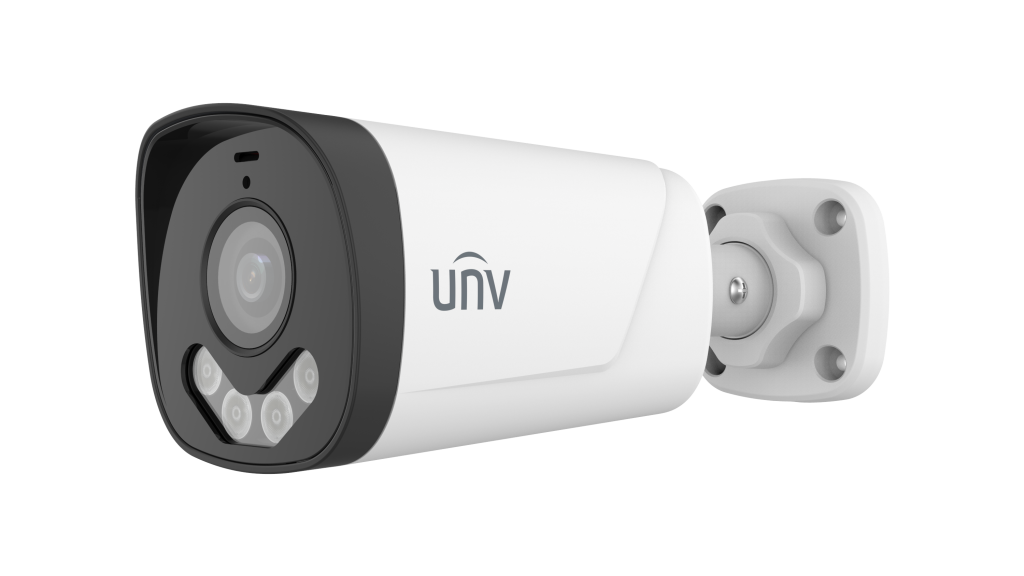

UNV UAC-B142-AF40LM-DL 2MP ColorHunter With Smart Dual Light Bullet Analog Camera
2MP ColorHunter With Smart Dual Light Bullet Analog Camera
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Camera | |
|---|---|
| Max Resolution | 2 MP |
| Sensor Size | 1/3.0" CMOS |
| Min. Illumination | 0.003 lux (F1.6, AGC ON) 0 lux (Illuminator ON) |
| Lens | |
| Focus | 4.0 mm |
| Lens Mount | M12 |
| Angle of View (H) | 82.5?? |
| Angle of View (V) | 42.1?? |
| Angle of View (D) | 98.6?? |
| Illuminator | |
| Illuminator Number | Two IR illuminators; Two white-light illuminators |
| Illumination Distance | IR: 40m (131.23 ft) White light: 40m (131.23ft) |
| Lifetime | ??? 60000 hours |
| Video | |
| Resolution | 1080P: 1920(H)??1080(V) 720P: 1280(H) ??720(V) |
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s-1/50000s??? NTSC: 1/30s-1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Light Mode | Dual light (default) , Infrared, White light |
| Flip | Supports 180??horizontal flip, 180??vertical flip |
| Digital Defog | N/A |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30 ??? to 60 ??? (-22 ??? to 140 ???) |
| Humidity | ??? 95% RH (non-condensing) |
| Surge Protection | 4kV for power&4kV for video output interfaces |
| General | |
| Power | DC 12 V ?? 25% |
| Power Consumption | MAX 3.6W |
| Mount | Corner Mount&Pole Mount |
| Dimensions | 198mm*74mm*74mm (L*W*H) |
| Material | Metal + Plastic |
| Weight | 227g(0.50lb) |
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
