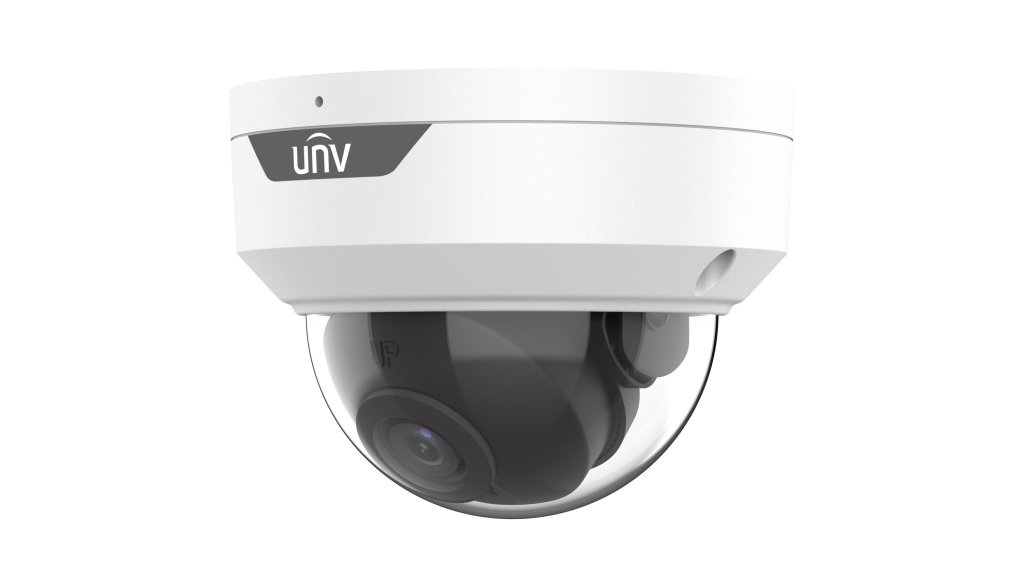

UNV UAC-D122-AF28M 2MP LightHunter HD IR Fixed Dome Analog Camera
2MP LightHunter HD IR Fixed Dome Analog Camera
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Camera | |
|---|---|
| Max Resolution | 2 MP |
| Sensor Size | 1/2.9" CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
| Lens | |
| Focus | 2.8 mm |
| Lens Mount | M12 |
| Angle of View (H) | 101.5?? |
| Angle of View (V) | 56.9?? |
| Angle of View (D) | 117.4?? |
| Illuminator | |
| Illuminator Number | One IR illuminator |
| Illumination Distance | 30m |
| Lifetime | ??? 60000 hours |
| Video | |
| Resolution | 1080P: 1920(H)??1080(V) 720P: 1280(H) ??720(V) |
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s-1/50000s??? NTSC: 1/30s-1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180??horizontal flip, 180??vertical flip |
| Digital Defog | Support |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30??C to 60??C (-22??F to 140??F) |
| Humidity | ??? 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces |
| Ingress Protection | IP67 |
| IK Rating | IK10 |
| General | |
| Power | DC 12 V ?? 25% |
| Power Consumption | MAX 3.3W |
| Mount | Wall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount |
| Dimensions | ??109mm*83mm (diameter*height) |
| Material | Metal |
| Weight | 372g(0.82lb) |
