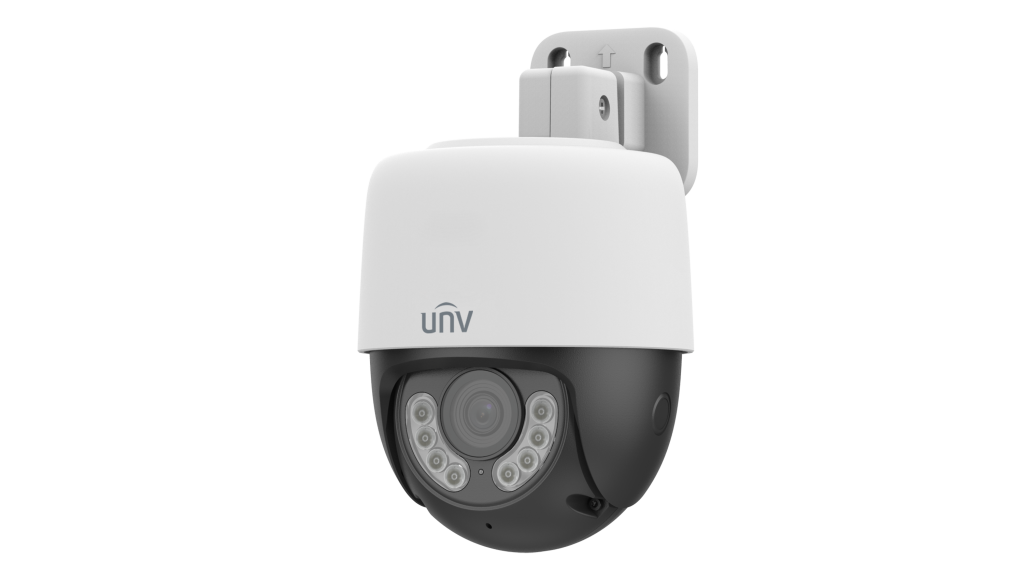

UNV UAC-P112-AF40-W 2MP ColorHunter HD PT Analog Camera
2MP ColorHunter HD PT Analog Camera
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Camera | |
|---|---|
| Max Resolution | 2 MP |
| Sensor Size | 1/2.9" CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (white light on) |
| Lens | |
| Focus | 4.0 mm |
| Lens Mount | M12 |
| Angle of View (H) | 83.8?? |
| Angle of View (V) | 42.7?? |
| Angle of View (D) | 100.1?? |
| Illuminator | |
| Illuminator Number | Eight white-light illuminators |
| Illumination Distance | 30m |
| Lifetime | ??? 20000 hours |
| Video | |
| Resolution | 1080P: 1920(H)??1080(V) 720P: 1280(H) ??720(V) |
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s-1/50000s??? NTSC: 1/30s-1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 color images |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180??horizontal flip, 180??vertical flip |
| Digital Defog | Support |
| PTZ | |
| Pan Range | 0?? to 345?? |
| Pan Speed | 1?? to 40??/s |
| Tilt Range | 0?? to 90?? |
| Tilt Speed | 1?? to 30??/s |
| Number of Presets | 32 |
| Control Mode | 485/BNC |
| Patrol | N/A |
| Baud Rate | 9600 bps/4800 bps/2400 bps/1200 bps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| RS485 | Support |
| Operating Environment | |
| Temperature | -30 ??? to 60 ??? (-22 ??? to 140 ???) |
| Humidity | ??? 95% RH (non-condensing) |
| Surge Protection | 4 KV for power, 4 KV for video output interfaces, 6 kV for RS485 interface |
| Ingress Protection | IP66 |
| General | |
| Power | DC 12 V ?? 25% |
| Power Consumption | MAX 8.5W |
| Mount | Wall Mount, Pendant Mount |
| Dimensions | ??118mm*190mm (diameter*height) |
| Material | Graphene + Plastic |
| Weight | 477g(1.05lb) |
