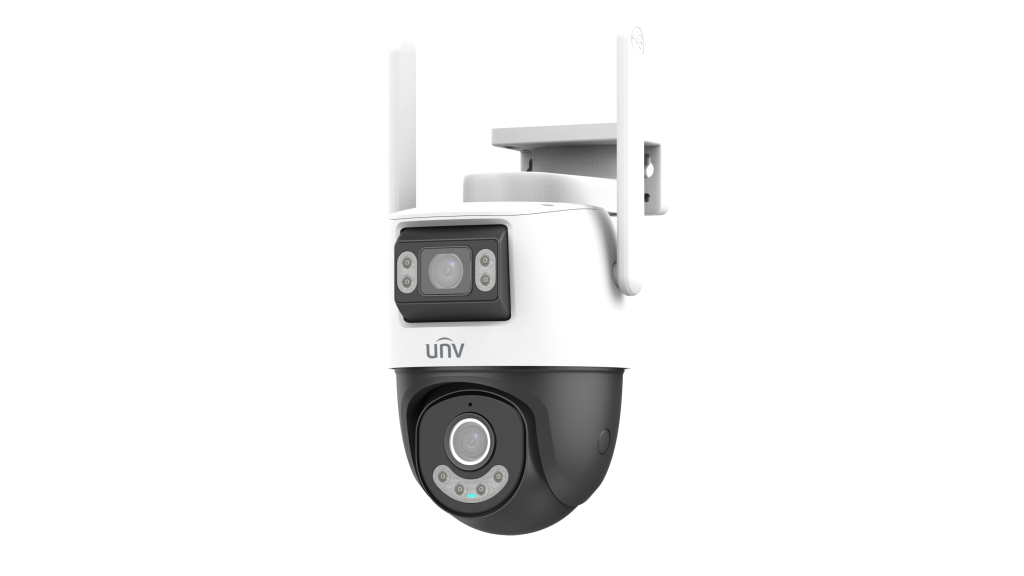

UNV Uho-P2S-M55F34-U Dual-Lens 5MP+5MP Wi-Fi PT Camera
Dual-Lens 10MP (5MP Fixed + 5MP PTZ) Wi-Fi Security Camera with Active Tracking
- Dual-Lens system: 5MP panoramic fixed wide-angle view + 5MP motorized PTZ detail
- Linked tracking: Fixed lens detects target and PTZ lens automatically zooms and follows
- High-performance Wi-Fi 6 wireless transmission with dual external antennas
- Smart human and vehicle AI classification with customizable voice alarms
- Supports up to 512GB MicroSD card and cloud storage backups
Price on RFP / Quotation
In Stock • Authorized Partner Supply
Technical Specifications
Official manufacturer parameters • Verified by Samari IT Solution| Channel | |
|---|---|
| Camera | |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON)0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| S/N | > 52 dB |
| Lens | |
| Digital Zoom | N/A |
| Iris | F1.6 |
| Field of View (H) | 94.9° |
| Field of View (V) | 53.7° |
| Field of View (D) | 100.5° |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 2.8mm |
| DORI Distance (Detect) | 63.0 (206.7ft) |
| DORI Distance (Observe) | 25.2 (82.7ft) |
| DORI Distance (Recognize) | 12.6 (41.3ft) |
| DORI Distance (Identify) | 6.3 (20.7ft) |
| Illuminator | |
| Light On/Off Control | Auto/Manual |
| Illumination Distance (IR) | 10 m (32.8 ft.) |
| Illumination Distance (Warm Light) | 10 m (32.8 ft.) |
| Wavelength | 850 nm |
| Video | |
| Frame Rate-Main Stream | 5MP (2880*1620), Max 15fps; 4MP (2560*1440), Max 15fps; 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps; |
| Video Compression | Ultra 265, H.265, H.264 |
| Frame Rate-Sub Stream | 640*360, Max 15fps; 2CIF (704*288), Max 15fps; CIF (352*288), Max 15fps; |
| Video Bit Rate | 128 Kbps to 2048 Kbps |
| ROI | Up to 8 areas |
| OSD | Up to 8 OSDs |
| Privacy Mask | Support (only NVR) |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | N/A |
| BLC | N/A |
| Defog | Digital defog |
| Other | |
| Corridor Mode | N/A |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, High-Decibel detection |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP |
| Compatible Integration | API |
| Client | APP, EZStation |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Wi-Fi | |
| Wireless Standards | IEEE802.11b/g/n/ax |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz Support |
| Modulation Mode | 802.11b: CCK802.11g/n: OFDM802.11ax: OFDMA |
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK |
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9 |
| Receive Sensitivity | 802.11b: -76 dBm@11 Mbps (Typical)802.11g: -65 dBm@54Mbps (Typical)802.11n: -61 dBm@MCS7, HT40 (Typical)802.11ax: -54 dBm@MCS9, HE40 (Typical) |
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps |
| PTZ | |
| Tilt Range | -5° ~ 30° |
| Tilt Speed | N/A |
| Pan Range | -150° ~ 150° |
| Pan Speed | N/A |
| Number of Presets | 20 |
| Interface | |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)FCC (FCC 47 CFR part15 B) |
| RF | FCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Protection | IP66 (IEC 60529) |
| General | |
| Power Consumption | MAX 11.5W |
| Power | DC 12V ± 25% |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Φ117mm*157mm*202mm (Φ4.6”x 6.2”x 7.9”) |
| Weight | 0.62kg (1.36lb) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| LED Indicator | 1, red/blue |
